Metal Casting Definition, Types and Processes

Definition

Casting is a method where a solid material is dissolved, heated to suitable temperature (generally treated to change its chemical structure), and is then added into a mold or cavity, which keeps it in a proper form during solidification. As a result, in just one step, complex or simple designs can be created from any material that can be dissolved. The end product can have nearly any setting the designer needs.

• For any casting procedure, choice of right alloy, sizing, shape, thickness, tolerance, structure, and weight, is really important.
• Special needs such as, magnetism, deterioration, stress distribution also have an impact on the selection of metal casting process.
• Opinions of the tooling manufacturer; foundry / machine house requirements, customer's exact product needs, and secondary procedures like paint work, must be addressed before choosing the right metal casting process.


  Metal Casting Processes

  There are numerous metal casting processes implemented in the manufacturing of parts. Two main divisions can be identified by the fundamental nature of a mold they use. There is expendable casting and long-lasting mold casting. Expendable molds are utilized for a single metal casting while long-lasting molds are utilized for several. When considering manufacturing procedures, there are pros and cons to both of the processes.

  Expendable Mold

  • Can only make one metal casting
  • Made of sand, or other similar materials
  • Binders used to support material hold its shape
  • Mold that metal hardens in should be damaged to wipe out casting
  • More complex geometries are feasible for casting

  Long-lasting Mold

  • Can create many metal castings
  • Generally made of metals or often a refractory ceramic
  • It has parts that can close or open, permitting eradication of the casting
  • Have to open mold limitations part designs

  Types of Metal Casting

  Centrifugal Casting

  In this range of processes the melted material is required to disperse into the mold hole because of centrifugal speed. Centrifugal casting procedures can be categorized as true casting processes, which, when the melted material is added into the cavity, pushes it against the cavity walls where it stiffens into a hollow container; semi-centrifugal casting, varies from real centrifugal casting. In this process, the mold cavity is 100% filled with molten material so that the center, which is later on taken out, is exposed to low stress and is where inclusions and air is caught and the centrifuging approach in which melted material is poured into several mold cavities and which move around the core axis and shifted from the core axis and causes the cavities to be stuffed under excessive pressure.


• Continuous Casting

  In this process, a flow of molten material equates of a water-cooled hole and creates a continuous rod or strip which is then chopped by a rounded saw. A new technique, generally known as circular continuous casting, entails the water-cooled hole (mold) oscillating as well as rotating at approximately 120 RPM during the casting procedure. Constant casting has an extremely high metal yield, around 98% in comparison with 87% in standard ingot-mold methods, outstanding quality of cast, manipulated grain sizes and the capability of casting unique cross-sectional designs.


• Die Casting

  Metal Die casting processes force the molten material into the hole of a steel cavity, termed as a die, within extremely high pressure, approximately 1000 – 30,000 psi. Categorization of die casting entails the kinds of machines used, the main types being used are hot-chamber and cold-chamber machines.

Electrical Discharge Machine (EDM) Types, Advantages and Disadvantages

Electrical discharge machine is stated as a spark eroding, burning, spark machining, wire burning and die sinking equipment. This machine is used to get the desired shapes of materials by using the electrical discharges or sparks. The discharge is made between two electrodes which are separated by a dielectric liquid subject to the electric voltage. The electrodes are named the tool-electrode and the work piece electrode. The electric discharge becomes greater when the distance between the two electrodes reduces. Thus, the material gets removed from the electrodes. Fresh dielectric liquid is introduced in the inter-electrode volume. This process is also called flushing. When the current flows again the difference of potential present between the electrodes is restored before the breakdown.

EDM History

In 1770, the impulsive effect of the electrical discharges of EDM was observed. This effect was discovered by the English physicist Joseph Priestly. The types of electrical discharge machines introduced were the Die-sink in 1943 and the Wire-cut machine in 1960s.

Definition

The electrical discharge machine is a machine that follows some technique in order to shape the surfaces of metal objects with the help of a dielectric liquid and a tool that releases a high intensity electric discharge.

Types of Electrical Discharge Machine

There are two types of EDM machine used commonly in today’s world:

Sinker EDM

The Sinker EDM is also called a volume EDM or cavity EDM. This has got a work piece and an electrode present in an insulating fluid. The work piece and the electrode are connected with specific supply of power. Due to the power electrical potential is created between the two components. When the electrode reaches the work piece then the dielectric discharged is released and forms a plasma channel with slight sparks.

Applications

The sinker EDM is used when the material parts of any object requires high tolerance or corner radius. There are a lot of products and parts of those products made from Sinker EDM. Usually the production molds and dies are made with the help of this sinker EDM. It is convenient to use for making such production dies and molds.

Advantages

Sinker EDM process can do wonders for your production industry and provides durable results with high-quality finishes. Following are the advantages of Sinker EDM:

• Cuts exotic materials easily
• Tough materials are easy to cut
• Little or no polishing is required after the process is complete
• Cuts thin materials without by preventing any damage

Disadvantages

• Excessive power consumption
• Slow material removal
• No or less conductive materials produced

Wire EDM

Introduced in 1969, the Wire EDM machining is a single-strand metal wire which is pretty thin made from brass present in the workpiece and also in dielectric fluid tank. Wire EDM is used in cutting plates thick as 300mm. Apart from this, it is also used in making dies, punches and several tools from hard metals.

Applications

Due to the flexibility of the machine the manufacturers use this to a wide range of applications. As the machine is able to cut very small pieces of materials too this is why it is a very smart choice for the production industries.

Advantages

• Cost effective
• High precision
• Best for prototype manufacturing
• Flexible machine for various cuts

Disadvantages

• Consumes high levels of energy
• Frequent change of brass, copper or other metal wire used in thermal stress

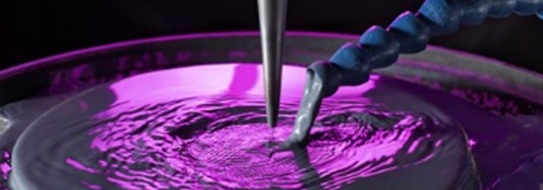

Ultrasonic Machining Process, Working Principles & Advantages

Ultrasonic machining is changing the manufacturing industries with its superlative performance. The main reason why this machining process is used in the manufacturing area is because it evolves less heat in the process. All the operations done with the ultrasonic machining method are cost effective and best in results. Ultrasonic machining is an abrasive process which can create any material into hard and brittle form with the help of its vibrating tool and the indirect passage of abrasive particles towards the work piece. It is a low material removal rate machining process.

Ultrasonic Machining

It is also known as Ultrasonic impact grinding  is an operation that involves a vibrating tool fluctuating the ultrasonic frequencies in order to remove the material from the work piece. The process involves an abrasive slurry that runs between the tool and the work piece. Due to this, the tool and the work piece never interact with each other. The process rarely exceeds two pounds.

Ultrasonic Machine is Useful for Hard Material

This method is the best choice for working with hard materials such as ceramic matrix composites, ruby, piezo-ceramics, glass, ceramics, Quartz, ferrite, diamonds, technical ceramics, alumina, PCD, sapphire, CVD silicon carbide and similar ones.

Ultrasonic Machining Process

The tool present in the machine for cutting the materials is made from a soft material as compared to the work piece. The tool is usually made from materials such as soft steels and nickel. When the tool vibrates, the abrasive slurry (liquid) is added which contains abrasive grains and particles. The abrasive slurry is added till the work pieces interacts with the grains. Due to the particles of liquid added, the work brittleness of the work piece abrades the surface meanwhile the tool deforms gradually.

Working Principle of Ultrasonic Machining

The time spent on ultrasonic machine entirely depends on the frequency of the vibrating tool. It also depends on the size of grains of the abrasive slurry, the rigidity and the viscosity as well. The grains used in the abrasive fluid are usually boron carbide or silicon carbide as they are rigid than others. The used abrasive can be carried away easily if the viscosity of the slurry fluid is less.

Ultrasonic Machining Advantages and Disadvantages

Get to know about the advantages and disadvantages of machining process in order to make the right decision:

Advantages

• Machined all sorts of hard materials
• Produces fine finished and structured results
• Produces less heat
• Various hole cut shapes due to vibratory motion of the tool

Disadvantages

• Requires a higher degree of integrity and skills
• No certified record of radiography
• Unnecessary large grain sizes causes defects
• Additional repairs might be required due to spurious signs and misunderstanding of the process

Ultrasonic machines are the future of machining which is used all over the world for creating hard and brittle forms of materials for the industrial uses. A lot of operations can be performed with the ultrasonic machine which can benefit the industrialists in a variety of ways. The advanced technology creates solution which helps in opening up the market opportunities and has made things easier.

Lathe Operations Types and Cutting Tools

Shaping up different materials and performing various functions such as sanding, deformation, cutting, facing, knurling, drilling, turning and much more is done with the lathe machines. Special tools are used in order to perform these various operations. Read on to know more about the lathe operations:

What Is Lathe?

Lathe is a machine that helps in shaping several material pieces in the desired shapes. A lathe is a machine that rotates the piece on the axis in order to perform various operations like cutting, facing, knurling, deformation and more. Metal spinning, thermal spraying, woodturning and metalworking are the common operations performed with a lathe machine. One can even shape pottery with this working wonder. Whatever material used in lathe machine whether metal or wood is molded first. The most commonly used lathes are the woodworking lathes.

The wood piece is placed in between the headstock and the tailstock of the lathe. Clamping is also used to work the piece about the axis of rotation with the help of a faceplate, clamps/dogs or collet/chuck. The products produced with the help of the lathe machine are cue sticks, musical instruments, candlestick holders, table legs, baseball bats, gun barrels, camshafts, bowls, crankshafts and much more. There are plenty of lathe that vary in sizes and shapes according to the work to be done.

Lathes Operations

The general operations done with the lathe are grooving, turning, cutting, sanding and etc. if anyone wants to operate the lathe machine then he must first know about the feeds, cutting speed, depth of the cut and usage of tool should be considered. Each lathe operation has got its own factors that need to be considered before doing the work. The factors should be used properly so that one can avoid from mishandling and mishaps while performing any kind of lathe operation. With every cut desired the speed, depth and feed of the lathe machine is changed for precision.

Types of Lathe Operation

The working of the lathe machine changes with every operation and cut desired. There are a lot of operations used for using the lathe machine. Some of the common lathe operations are:

Facing

This is usually the first step of any lathe operation on the lathe machine. The metal is cut from the end to make it fit in the right angle of the axis and remove the marks.

Tapering

Tapering is to cut the metal to nearly a cone shape with the help of the compound slide. This is something in between the parallel turning and facing off. If one is willing to change the angle then they can adjust the compound slide as they like.

Parallel Turning

This operation is adopted in order to cut the metal parallel to the axis. Parallel turning is done to decrease the diameter of the metal.

Parting

The part is removed so that it faces the ends. For this the parting tool is involved in slowly to make perform the operation. For to make the cut deeper the parting tool is pulled out and transferred to the side for the cut and to prevent the tool from breaking.

Lathe Cutting Tools

There are several lathe cutting tools that help in cutting with the lathe machine. The commonly used tools are mentioned below:

• Carbide tip tools
• Grooving tool
• Cut-Off blade
• Parting blades
• Boring bar
• Side tool

Milling Machine Definition, Process & Types

Mill Machining, Milling Process, Horizontal & Vertical Milling Machines

Definition

Milling is a process performed with a machine in which the cutters rotate to remove the material from the work piece present in the direction of the angle with the tool axis. With the help of the milling machines one can perform many operations and functions starting from small objects to large ones.

Milling machining is one of the very common manufacturing processes used in machinery shops and industries to manufacture high precision products and parts in different shapes and sizes.

Milling Machine

The milling machines are also known as the multi-tasking machines (MTMs) which are multi-purpose machines capable of milling and turning the materials as well. The milling machine has got the cutter installed up on it which helps in removing the material from the surface of the work piece. When the material gets cooled down then it is removed from the milling machine.

Milling Process

The milling machine involves the following processes or phases of cutting:

Milling Cutters

There are a lot of cutting tools used in the milling process. The milling cutters named end mills have special cutting surfaces on their end surfaces so that they can be placed onto the work piece by drilling. These also have extended cutting surfaces on each side for the purpose of peripheral milling. The milling cutters have small cutters at the end corners. The cutters are made from highly resistant materials that are durable and produce less friction.

Surface Finish

Any material put through the cutting area of the milling machine gets regular intervals. The side cutters have got regular ridges on them. The distance between the ridges depends on the feed rate, the diameter of the cutter and the quantity of cutting surfaces. These can be the significant variations in the height of the surfaces.

Gang Milling

This means that more than two milling cutters are involved in a setup like the horizontal milling. All the cutters perform a uniform operation or it may also be possible that the cutter may perform distinct operations. This is an important operation for producing duplicate parts.

Types of Milling Machines

The two main configurations of the milling machining operations are the types of milling machines. These are the vertical mill and the horizontal mill. They are further discussed below:

Vertical Milling Machines

The vertical mill has a vertically arranged spindle axis and rotate by staying at the same axis. The spindle can also be extended and performing functions such as drilling and cutting. Vertical mill has got two further categories as well: turret mill and bed mill.

The turret mill has got a table that moves perpendicularly and parallel to the spindle axis in order to cut the material. The spindle is, however, stationary. Two cutting methods can be performed with this by moving the knee and by lowering or raising the quill.

The other is the bed mill in which the table moves perpendicular to the axis of the spindle and the spindle moves parallel to its axis.

Horizontal Milling Machines

The horizontal mill is also the similar cutter but their cutters are placed on a horizontal arbor. A lot of horizontal mills have got rotary tables that help in milling in various angles. These tables are called the universal tables. Apart from this all the tools that are used in a vertical mill can also be used in the horizontal mill.

Machining Operation and Types of Machining Tools

Machining

Machining is manufacturing process that involves removing materials using cutting tools for getting rid of the unwanted materials from some workpiece and converting it into the shape you desire. A large piece of stock is used for cutting the workpiece. The large stock might be in any shape such as solid bar, flat sheet, beam or even hollow tubes. The process can also be performed on some existing part like forging or casting.

Machining Operations

Machining operations are classified into 3 principle processes and they are turning, drilling and milling. There are other operations too that fall in miscellaneous categories such as boring, sawing, shaping, and broaching. A specific machine tool is required for taking care of each machining operation.

Types of Machining Tools

Machining is categorized into the types of machining tools explained in detail:

Drilling

In drilling process holes are created in the metal through circular cylinders. A twist drill is used for accomplishing this task. 75% of the metal cutting material is removed through the drilling operation. The drill enters the workpiece and cuts a hole which is equal to the diameter of the tool that was used for cutting the whole. A drill has a pointed end which can easily cut a hole in the work piece.

Turning

Turning is basically a lathe operation by which the metal is removed from the workpiece outside its diameter using a cutting tool. This operation is performed on a lathe which is a machine where the workpiece is adjusted and the tool is kept stationary whereas the workpeice is rotated. Lathes are specially designed for the turning operation and they help in cutting the metal in the most precise way. The workpiece is placed on the chuck and the machine rotates the stationary tool to cut the unwanted parts from the piece.

Milling

Milling is one of the fundamental operations in machining. This manufacturing process is less accurate than the turning processes because the degree of freedom is high. Milling fabricates the object which is not axially symmetric. A milling machine is required for this purpose along with a fixture, cutter and of course the workpiece. The workpiece here is the material that is already shaped and it needs milling. It is secured to the fixture, ready for being milled. The cutter is also secured to the machine. It has sharp teeth and it rotates at a high speed. The workpiece is fed to the cutter and it removes the unwanted metal from the piece.

Grinding

Grinding process is used for improving the finish of the surface and tightening up the tolerance by removing the remaining unwanted materials from the surface. Grinding machines are used for this purpose to produce parts of identical shape, size and finish.

Chip Formation

In chip formation process materials are cut through mechanical means by using tools like milling cutters, saws and lathes. It is an integral part of the engineering of developing machines and cutting tools.
